H-401ATC
Source：network Time：2015-06-18 Hits：1337

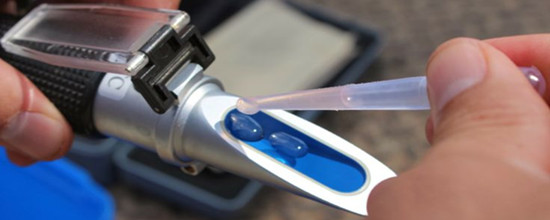

The Auto refractometer are designed for measuring the concentration of the battery fluids. the freezing point of antifreeze liquid and windshield cleaning fluid. With the indication of the percentage you may know at which temperature the fluid will be frozen for both propylene glycol and ethylene glycol. It can also be used for checking the strength of electrolyte solution battery.
Measuring Range: Ethylene Glycol: 32- -50°F
Propylene Glycol: 32- -50°F
Battery fluid: 1.15-1.30sg
Precision: Ethylene Glycol: 10°F
Propylene Glycol: 10°F
Battery fluid: 0.01sg
| Model | Measure Range | Accuracy | ||
| H-401 | Ethylene Glycol | -50oF~32oF | 10oF | ATC |
| Propylene Glycol | -50oF~32oF | 10oF | ||
| Battery Fluids | 1.15~1.30KG/L | 0.01KG/L | ||
| H-402 | Ethylene Glycol | -50oC~0oC | 10oC | ATC |
| Propylene Glycol | -50oC~0oC | 5oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| H-403 | Ethylene Glycol | -50oC~0oC | 10oC | ATC |
| Propylene Glycol | -50oC~0oC | 5oC | ||
| Cleanning Watter | -40oC~0oC | 10oC | ||
| Battery Fluids | 1.15~1.30KG/L | 0.01KG/L | ||
| H-404 | Ethylene Glycol | -50oC~0oC G13 | 5oC | ATC |
| Propylene Glycol | -50oC~0oC G11/12 | 5oC | ||
| Cleanning Watter | -40oC~0oC SRFI | 10oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| H-405A | Ethylene Glycol | -60oC~0oC(0~66.6%) | 10oC | ATC |
| Propylene Glycol | -50oC~0oC(0~62.4%) | 5oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| H-406A | Ethylene Glycol | -84oF~32oF(0~70%) | 10oF | ATC |
| Propylene Glycol | -60oF~32oF(0~63%) | 5oF | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| H-408 | Coolants | -60oC~0oC | 5oC | ATC |
| Density | 0~100% | 5% | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L |
