H-404ATC

Source：network Time：2015-06-18 Hits：1524

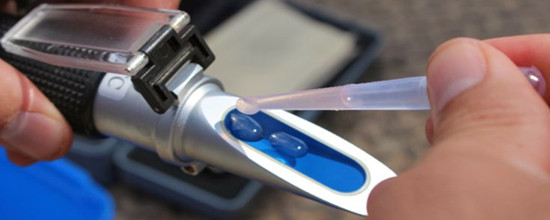

The Auto refractometer are designed for measuring the concentration of the battery fluids. the freezing point of antifreeze liquid and windshield cleaning fluid. With the indication of the percentage you may know at which temperature the fluid will be frozen for both propylene glycol and ethylene glycol. It can also be used for checking the strength of electrolyte solution battery.

Accurately measures the strength of battery fluid,screenwash and antifreeze by measuring the refractive index of light passing through the mixture. Suitable for

synthetic antifreeze mixtures including long life OAT (Organic Acid Technology) and G13. Temperature corrected prism ensures accuracy.

Measuring Range: Ethylene Glycol: 0- -50°C
Propylene Glycol: 0- -50°C
Battery fluid: 1.10-1.40kg/L
Cleaning liquid: 0- -40°C
Precision: Ethylene Glycol: 5°C
Propylene Glycol: 5°C
Battery fluid: 0.01kg/L
Cleaning liquid: 10°C

Model		Measure Range	Accuracy
H-401	Ethylene Glycol	-50^oF~32^oF	10^oF	ATC
	Propylene Glycol	-50^oF~32^oF	10^oF
	Battery Fluids	1.15~1.30KG/L	0.01KG/L
H-402	Ethylene Glycol	-50^oC~0^oC	10^oC	ATC
	Propylene Glycol	-50^oC~0^oC	5^oC
	Battery Fluids	1.10~1.40KG/L	0.01KG/L
H-403	Ethylene Glycol	-50oC~0oC	10oC	ATC
	Propylene Glycol	-50oC~0oC	5oC
	Cleanning Watter	-40^oC~0^oC	10^oC
	Battery Fluids	1.15~1.30KG/L	0.01KG/L
H-404	Ethylene Glycol	-50^oC~0^oC G13	5^oC	ATC
	Propylene Glycol	-50^oC~0^oC G11/12	5^oC
	Cleanning Watter	-40^oC~0^oC SRFI	10^oC
	Battery Fluids	1.10~1.40KG/L	0.01KG/L
H-405A	Ethylene Glycol	-60^oC~0^oC(0~66.6%)	10^oC	ATC
	Propylene Glycol	-50oC~0oC(0~62.4%)	5^oC
	Battery Fluids	1.10~1.40KG/L	0.01KG/L
H-406A	Ethylene Glycol	-84^oF~32^oF(0~70%)	10^oF	ATC
	Propylene Glycol	-60^oF~32^oF(0~63%)	5^oF
	Battery Fluids	1.10~1.40KG/L	0.01KG/L
H-408	Coolants	-60oC~0oC	5oC	ATC
	Density	0~100%	5%
	Battery Fluids	1.10~1.40KG/L	0.01KG/L
